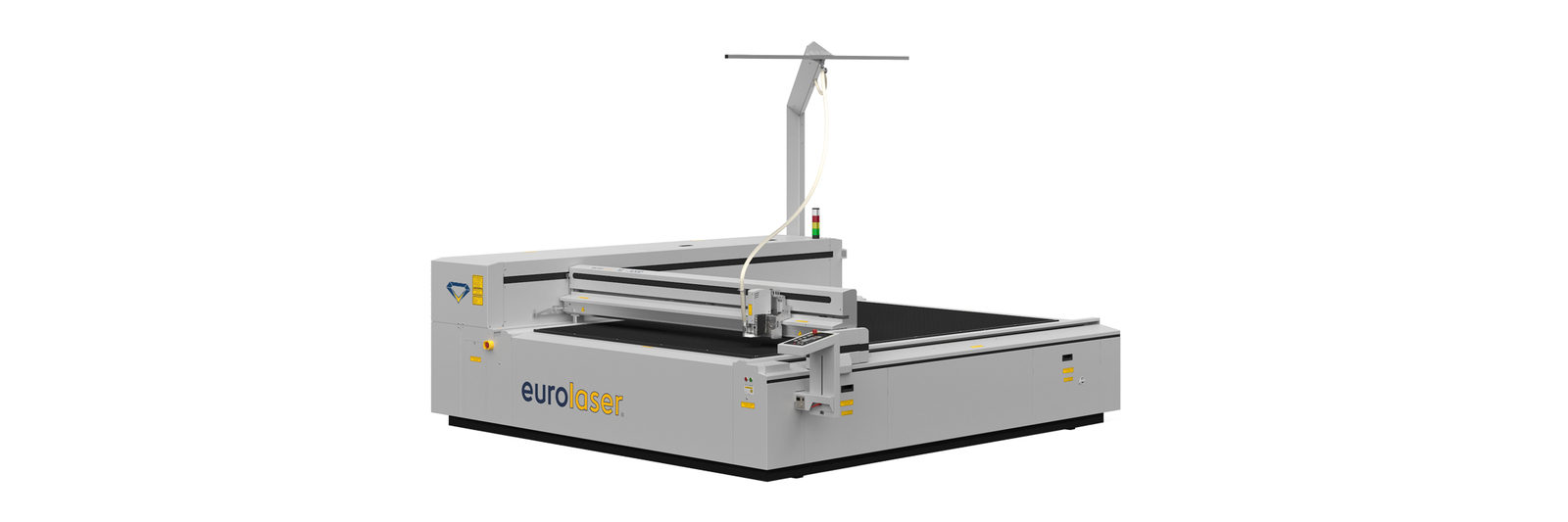

Eurolaser XL-3200

Eurolaser XL-3200

Large-Format CO2 Laser Cutter by Eurolaser GmbH

Purpose

The Eurolaser LCS G3 XL-3200 is an ultra-precise, large-format CO2 laser cutting and engraving system designed for processing textiles, plastics, acrylics, wood, and composite sheet materials. Featuring a massive 3.2-metre wide working table and state-of-the-art Zünd cutting table mechanics, this system delivers contactless cutting with sealed edges on fabrics and optical clarity on acrylics. Zell-em uses the XL-3200 to produce intricate signage components, custom displays, laser-cut apparel patches, and large architectural overlays.


History

German manufacturer Eurolaser partnered with Swiss precision engineering firm Zünd to create the LCS G3 series, bringing industrial CO2 laser heads onto world-leading flatbed plotter tables. The XL-3200 was engineered specifically to handle continuous roll goods and oversized sheet media up to 3.2 metres wide. Zell-em adopted this technology to deliver premium, flame-polished laser edges and complex geometric cuts that mechanical knives simply cannot achieve.

Specifications

  • Active Working Area: 3200 mm x 2200 mm (126" x 86")
  • Laser Source: Sealed-off CO2 Laser Unit
  • Laser Power Options: 60W up to 600W Sealed Laser Modules
  • Max Cutting Speed: Up to 1414 mm/s (acceleration up to 1G)
  • Repeatability Accuracy: ± 0.1 mm
  • Exhaust System: Multi-stage filtration and fume extraction unit
  • System Footprint: Approx. 4.2 m x 3.8 m

Functions

  • Contactless Laser Processing: Zero material distortion or clamping required—ideal for delicate or stretch fabrics.
  • Automatic Edge-Sealing: Instantly fuses synthetic textile fibers during cutting to eliminate fraying completely.
  • Shuttle Table & Conveyor Options: Supports continuous automated feed of textile rolls for uninterrupted production.
  • Optical Camera Recognition (POSITION PLUS): Detects print registration marks on printed media to automatically compensate for print stretch and distortion.
  • Modular Tooling Extensions: Allows simultaneous integration of laser cutting heads alongside mechanical routing tools.
