"Happy" HCR3-1506

"Happy" HCR3-1506

HappyJapan / Texmac Inc. by Automatic Commercial Embroidery Machine

Purpose

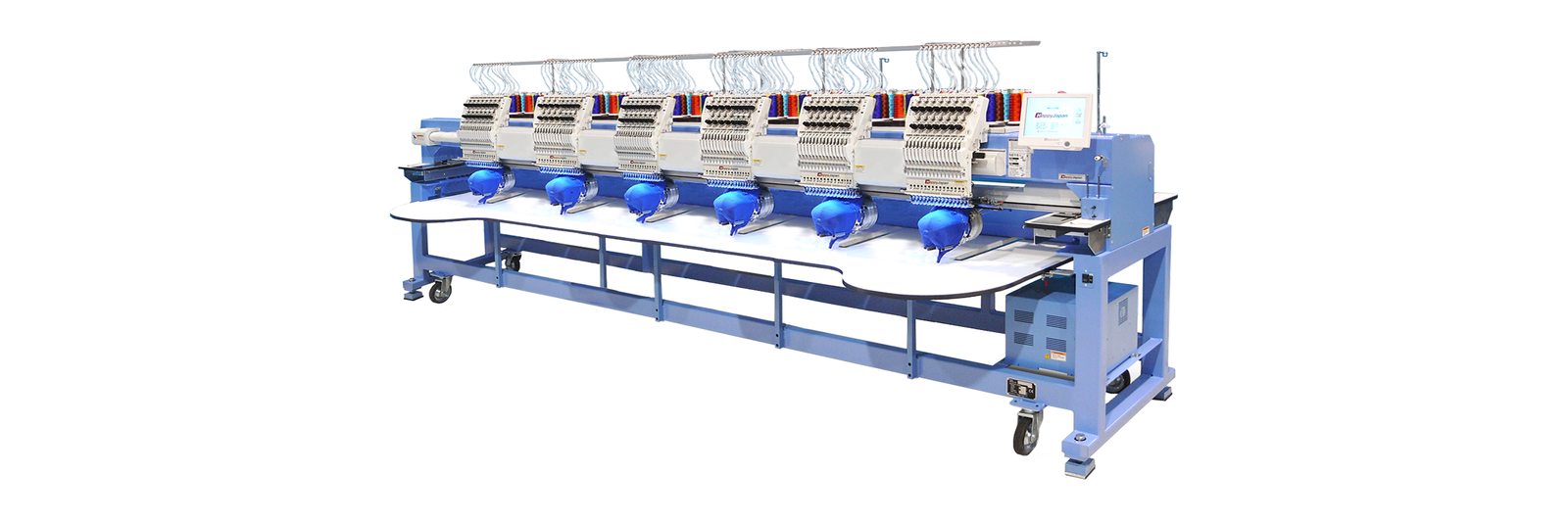

The Texmac HCR3-1506 (manufactured by HappyJapan) is a heavy-duty, 6-head commercial automatic embroidery machine built for high-speed multi-garment branding. Capable of stitching up to 15 colours per head simultaneously, this unit is designed to embellish workwear jackets, polo shirts, caps, hoodies, and corporate apparel with high-density embroidery. Zell-em uses the HCR3-1506 to fulfill medium-to-large embroidery contracts with tight turnarounds and consistent stitch tension.


History

HappyJapan embroidery machinery, distributed globally in partnership with Texmac, is engineered in Japan with a reputation for extreme durability and whisper-quiet mechanical performance. The HCR3 series introduced upgraded servo motors, a reinforced frame, and a smaller cylinder arm for easier stitching on sleeves and pockets. Zell-em integrated the 6-head platform to significantly boost embroidered garment throughput.

Specifications

  • Number of Heads: 6 Heads
  • Needles Per Head: 15 Needles / Colours
  • Maximum Stitch Speed: 1100 stitches per minute (SPM)
  • Maximum Embroidery Area: 450 mm x 360 mm per head
  • Control Panel: 10.4-inch High-Definition Color LCD Touchscreen
  • Memory Capacity: 40 million stitches / 999 designs
  • Power Supply: Single Phase 220V AC, 50/60Hz

Functions

  • 6-Head Simultaneous Stitching: Multiplies embroidery production sixfold on every run.
  • Narrow Cylinder Arm Design: Fits easily inside pre-stitched pockets, socks, small caps, and narrow cuffs.
  • Automatic Thread Trimmers: Cuts top and bottom threads cleanly between color shifts and jump stitches.
  • Built-In Thread Break Sensors: Pauses production instantly if a thread breaks, minimizing blank spots and garment damage.
  • Direct USB & LAN Connectivity: Instant networking for digital embroidery design transfer from digitizing software.
