M&R Sportsman Series 10 Colour

M&R Sportsman Series 10 Colour

M&R Companies by Automatic Screen Printing Press

Purpose

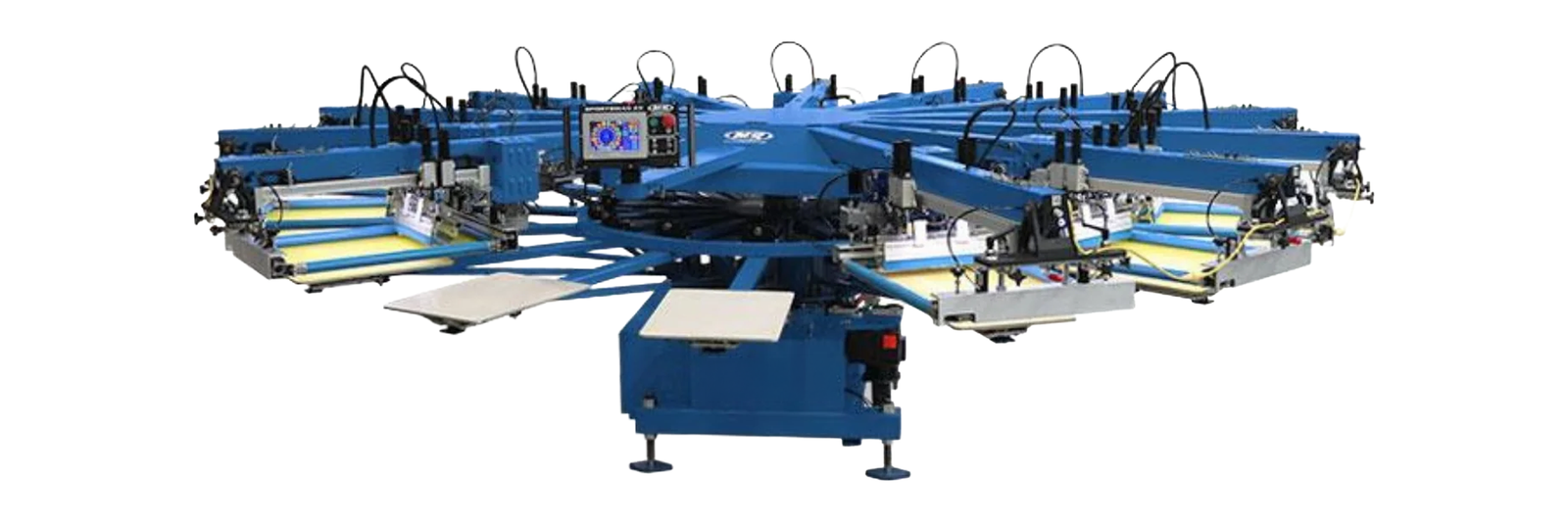

The M&R Sportsman Series 10 Colour is a high-performance automatic screen printing press designed for high-volume garment decoration, promotional textile printing, and precise multi-colour apparel branding. Renowned across the print industry for its exceptional registration accuracy, rapid indexing speeds, and uniform ink deposit, this press enables Zell-em to produce large runs of custom t-shirts, hoodies, and workwear with flawless colour consistency. Its heavy-duty construction and smooth pneumatic head operation ensure every garment achieves vibrant tones and razor-sharp line detail.


History

Engineered in North America by M&R Companies—the industry standard in textile screen printing equipment—the Sportsman series revolutionized automated screen printing when first introduced. Built on decades of manufacturing innovation, the 10-colour configuration represents the sweet spot between versatility and high throughput. Zell-em integrated the Sportsman Series to expand capacity for complex multi-colour artwork while drastically reducing turnaround times for high-volume commercial print clients.

Specifications

  • Max Colour Capacity: 10 Colours / 12 Stations
  • Printing Technology: Automated Pneumatic / Servo-Driven Screen Printing
  • Maximum Print Area: 41 x 46 cm (16" x 18")
  • Standard Pallet Size: 38 x 56 cm (15" x 22")
  • Maximum Frame Size: 58 x 78 x 3.8 cm (23" x 31" x 1.5")
  • Air Consumption: ~340 L/min at 6.9 bar
  • Power Requirements: 208/230V, 3-Phase, 50/60Hz

Functions

  • Electric Drive Indexing: Delivers whisper-quiet, ultra-fast index cycles for maximum hourly production output.
  • Micro-Registration System: Precise multi-axis micro-adjustment for exact colour alignment across intricate designs.
  • Independent Print/Flood Speed Controls: Allows custom stroke length and speed calibration for precise ink deposits on varying fabric weights.
  • Central Control Panel: Digital interface with real-time diagnostic reporting, cycle counters, and print program memory.
  • Tool-Free Squeegee/Floodbar Clamps: Speeds up job changeovers and calibration between different print runs.
