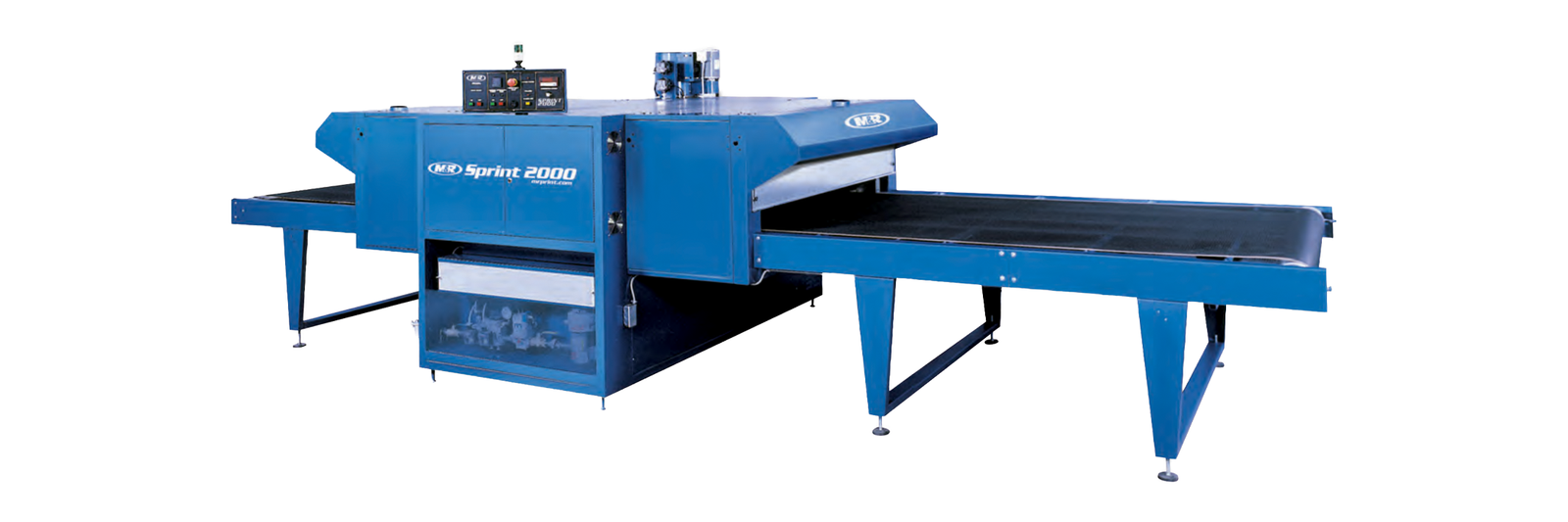

M&R Sprint 2000

M&R Sprint 2000

Industrial Gas Textile Dryer by M&R Companies

Purpose

The M&R Sprint 2000 is a heavy-duty, high-capacity gas textile drying chamber engineered for curing screen-printed inks, water-based dyes, and discharge prints on garments. Featuring forced-air convection heating and high-volume air circulation, the Sprint 2000 guarantees that inks reach their precise chemical cure temperature evenly across the entire belt width. For Zell-em, this unit is the key to producing wash-fast, durable prints that maintain soft hand-feel and vibrant colours through hundreds of laundry cycles.


History

The Sprint series from M&R has long set the global benchmark for commercial screen print curing systems. Developed to match the output speed of multiple automatic presses, the Sprint 2000 integrated advanced air-recirculation technology to maximize thermal efficiency while reducing natural gas consumption. It remains a cornerstone of Zell-em’s post-print curing infrastructure.

Specifications

  • Heating Source: Natural Gas or Liquid Propane (Forced Air Convection)
  • Conveyor Belt Width: 122 cm (48") to 183 cm (72") options
  • Chamber Length: 3.0 m to 6.1 m heat zone configurations
  • Max Temperature Range: Up to 232°C (450°F)
  • Air Velocity Control: Variable-speed high-efficiency circulation blowers
  • Power Requirements: 208–240V, 3-Phase, 50/60Hz

Functions

  • High-Volume Air Recirculation: Thermal efficiency that reduces fuel use while delivering uniform temperature distribution across the belt.
  • Digital Temperature Controller: Microprocessor-controlled heat management maintains temperature within ±1°C of setpoint.
  • Teflon-Coated Fiberglass Belt: Heat-resistant belt tracking system ensures smooth, snag-free garment travel.
  • Exhaust Air Management: Removes moisture, fumes, and volatile organic compounds (VOCs) safely out of the production environment.
  • Cool-Down Zone Output: Integrated cooling fans at the exit end allow garments to be handled and stacked immediately upon exiting.
